KPI Chart Wizard

The wizard appears when you right-click a KPI chart in a KPI in a web report or library component and select KPI Chart Wizard from the shortcut menu. It helps you to modify the KPI chart.

The wizard consists of the following screens: Data, Type, Display, Layout, and Style.

Back

Goes back to the previous screen.

Next

Goes to the next screen.

Finish

Applies the changes to the KPI chart and closes the wizard.

Cancel

Does not retain changes and closes the wizard.

Help

Displays the help document about this feature.

Data

Shows the business view used by the KPI chart.

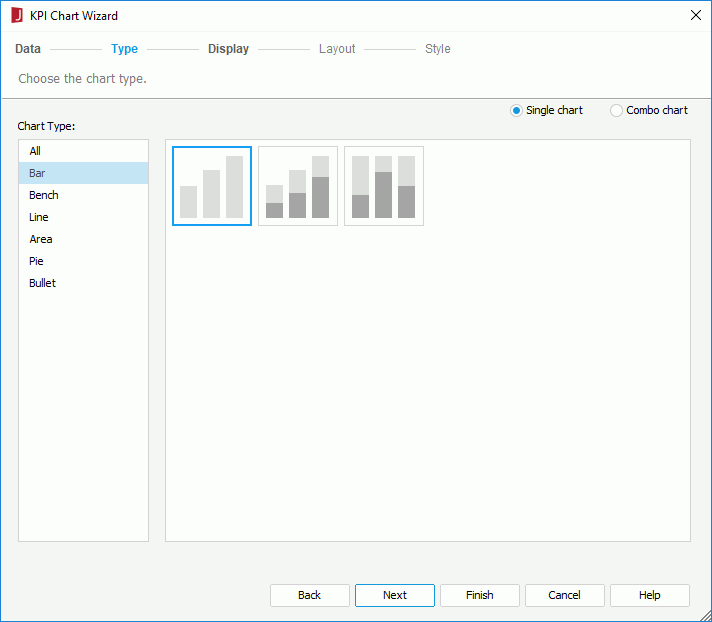

Type

Specifies the type of the chart. The following 2-D chart types are supported in KPI charts: Bar, Bench, Line, Area, Pie, and Bullet. You can refer to the section Chart Types for the corresponding chart types in detail.

Single chart

Specifies to create a single chart.

• Chart Type
  Lists all the chart types that can be used to create a single chart.
• Subtype
  Lists all the subtypes of the selected chart type. Hover the mouse pointer on a subtype icon and you will see its name.

Combo chart

Specifies to make more than one type use the primary or secondary axis. The types should be featured as combination charts. Two types of data markers are used to represent different data values.

• Chart Type
  Lists all the chart types that can be added as a combo chart.
• Subtype
  Lists all the subtypes of the selected chart type. Hover the mouse pointer on a subtype icon and you will see its name.
• Chart Type Groups
  Lists all the chart types that are to be used in the combo chart.
  • Primary Axis
    • <Add Combo Type>
      Adds a chart type to the primary axis.
  • Secondary Axis
    • <Add Combo Type>
      Adds a chart type to the secondary axis.
•
  Removes the selected chart type from the Chart Type Groups box.

Display

Specifies the data to display on the chart.

Title

Specifies the title of the chart.

Resources

Lists the resources in and related to the bound business view, which can be used to create the chart. You can also create dynamic resources to use in the chart.

Adds the selected fields to be displayed in the chart.

Removes the selected fields from the chart if they are not required.

Replaces the added field on the right with the selected field in the Resources box.

Category/Series box

Lists the field to display on the category/series axis of the chart.

For a real time chart, if no category field is specified, the text Use System Refresh Time will be automatically displayed in the Category box, namely the time at which the chart refreshes itself will be used as the category value; the series axis will be disabled.

• Special Group
  Opens the User Defined Group dialog to define how to group information.
• Order/Select N
  Opens the Category Options dialog or Series Options dialog to specify the sort order of the category or series values and define the number of the category or series values to show on the chart.

Show Values box

Lists the values you want to show in the chart.

•
  Opens the Edit Additional Value dialog to edit an additional value. Available only when a constant value or an average value is selected.
•
  Moves the selected value one step up.
•
  Moves the selected value one step down.

Motion Bar for Playable Chart

Lists the field used as the motion field. A motion field can only be of the Integer, Date or Time data type. Available to single bar and bench charts in KPI charts only.

• Special Function
  Opens the Special Function dialog to define special function to the motion field. Available only when the motion field is of the Date data type.

Real Time

Specifies to run the chart in real time mode. Available to single bar, bench, line, and area charts only.

• Use System Time for Category
  Specifies to use the time at which the chart refreshes itself as the category value.
• Refresh Interval
  Specifies the time interval at which the chart will get data and refresh itself automatically.
• Show Most Recent N Points
  Specifies the number of points that will be kept for the real time data on the chart.
• Incremental Fetch
  Opens the Unique Key dialog to configure a unique key for the real time chart.

Layout

Specifies the layout of the chart elements. Some layout options may not be available for certain chart types. For details about the options, click here.

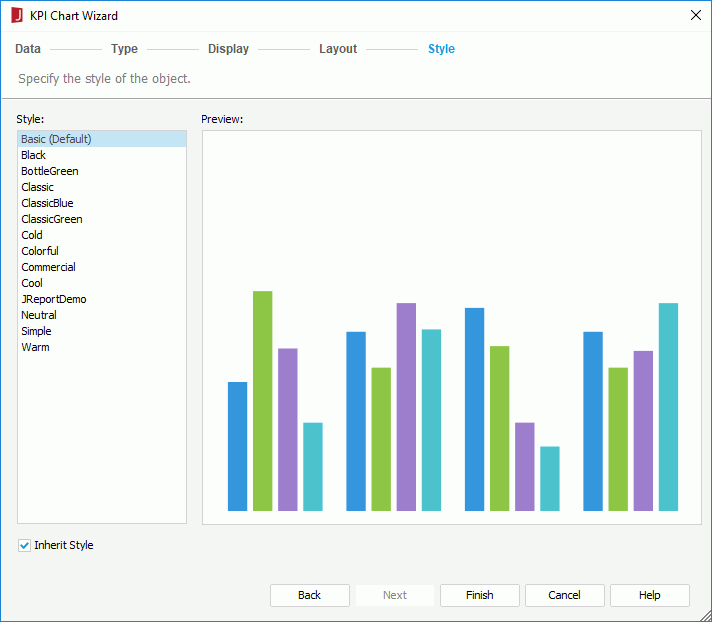

Style

Specifies the style of the chart.

Style

Specifies the style of the chart.

Preview

Displays the selected style and layout effects.

Inherit Style

Specifies whether to make the chart take the style of the parent KPI.
