Modifying Crosstabs

Editing a crosstab with wizard

Adding more column/row headers and aggregations to a crosstab

Defining comparison functions in a crosstab

Customizing the layout of a crosstab

Editing a crosstab with wizard

After a crosstab is created, you can further modify it by accessing its shortcut menu wizard which is composed by a set of screens that are similar to the wizard screens used to create the crosstab. For example, you can change the data used by the crosstab, reset the layout and style of the crosstab.

1. Right-click the crosstab and select Crosstab Wizard from the shortcut menu to display the Crosstab Wizard.
2. In the Data screen, specify a new data source for the crosstab if required.
3. In the Display screen, specify the fields you want to display in the crosstab.
4. In the Layout screen, specify the layout of the crosstab.
5. In the Style screen, set a style for the crosstab.
6. Click Finish to accept the changes.

For more detailed information about defining a crosstab, see Inserting Crosstabs in a Report.

Adding more column/row headers and aggregations to a crosstab

Besides using the wizard, you can drag and drop fields from the Data panel of the main window to add column/row headers and aggregations in a crosstab.

To add a column/row header in a crosstab:

1. From the resource tree in the Data panel, select a group objects or dynamic formulas used as Group if the crosstab is business view based, or a DBField or formula if query based.
2. Drag the selected field to an existing column/row header until a blue line appears (for a blank crosstab, drag to the Total label to create the first column or row header), then release the mouse button. A new column/row header is then added above/on the left of the column/row.

After you have added a column/row header using the drag method, when you open the crosstab wizard, in the Display screen you can find the new fields in the corresponding box.

To add an aggregation in a crosstab:

You can add detail aggregations, subtotals and grand totals in a crosstab by dragging an aggregate field to the crosstab. The following fields can be used as aggregate fields in crosstabs: aggregation objects , detail objects , dynamic formulas used as Aggregation , dynamic formulas used as Detail and dynamic aggregations in a business view; DBFields, formulas and crosstab formulas in a query resource.

1. From the resource tree in the Data panel, select a field that can be used as crosstab aggregate field.
2. Drag the selected field to the aggregation area in the crosstab until a blue line appears, then release the mouse button. The position determines whether detail aggregations, subtotals or grand totals will be created in the crosstab.

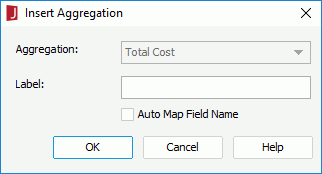

   The Insert Aggregation dialog appears.



3. From the Aggregate Function drop-down list, specify the function used for the selected field.

   If the selected field has been predefined with an aggregate function, you cannot edit the function any more, and the drop-down list is changed to the Aggregation text box with the name of the field displayed in it.

4. In the Label text box, specify the label text for the aggregate field if needed, which will label the newly created aggregations in the crosstab. If the crosstab is created using a business view, you can use the Auto Map Field Name checkbox to specify whether to automatically map the label text to the dynamic display name of the field at runtime. However whether the label would be displayed depends on if you have added any labels to label the column headers/row headers/aggregations in the crosstab while creating or editing the crosstab with the crosstab wizard. If no label is defined in the wizard, the label you add in the Insert Aggregation dialog will be ignored.
5. Click OK and a new aggregation is added in the crosstab.

After you have added an aggregation using the drag method, when you open the crosstab wizard, in the Display screen you can find the new fields in the corresponding box.

For the aggregations in a crosstab:

• If the aggregate field from which the aggregations are created has no predefined aggregate function, you can change the function of the aggregations at anytime. To do this, right-click an aggregation and on the shortcut menu point to Switch Aggregate Function, then select the required function from the submenu. The new function only applies to the specified aggregation and does not affect the function the corresponding aggregate field uses. In this way you can make the detail aggregations, subtotals and grand totals calculated from the same aggregate field apply different aggregate functions.
• Remove them if not required. To remove an aggregation, right-click it and click Remove Aggregation on the shortcut menu.

Defining comparison functions in a crosstab

A comparison function refers to calculations of percentage, permillage, or difference between:

• subtotal and grand total
• subtotal of inner group and subtotal of outer group
• values of aggregate field and subtotal
• values of aggregate field and grand total

To define comparison functions in a crosstab:

1. When creating or editing a crosstab with the crosstab wizard, select an aggregate field in the Summaries box of the Display screen and click the Comparison Function button. The Comparison Function dialog appears.



2. From the Function drop-down list, select the required function: Percentage, Permillage or Difference.
3. Specify a position for the comparison function.
   • Comparison Function Spans on Row Direction
     The comparison function will be placed into the column total cell of the crosstab.
   • Comparison Function Spans on Column Direction
     The comparison function will be placed into the row total cell of the crosstab.
4. Numbers that form the calculation of the comparison function are determined by the Break By and Refer To drop-down lists.

   Items in the Break By drop-down list vary based on the position of the comparison function. It specifies the first parameter of the comparison function: the detail aggregation in the crosstab (Aggregate) or the subtotal of a specified row/column group.

   Items in the Refer To drop-down list also vary according to what you have selected from the Break By drop-down list. It specifies the other parameter of the comparison function: the grand total or subtotal for an outer row/column group.

5. Click OK and you can see that a new field is added into the Summaries box. Set the display name for the field in the Label column if required.
6. Repeat the above steps to define comparison functions for other aggregate fields in the crosstab.
7. Click Finish in the Crosstab Wizard to apply the settings.

The following presents an example of using comparison function in a crosstab. It assumes that you have a web report with a crosstab in it in the catalog SampleReports.cat saved in <install_root>\Demo\Reports\SampleReports. The crosstab contains the following information:

• Uses business view WorldWideSalesBV in Data Source 1 of the catalog as the data source.
• Displays the group objects Product Type and Category as the column fields, Country and State as the row fields, the detail object Quantity as the aggregate field and apply Sum as the aggregate function.
• Applies the filter "Country = Canada OR Country = France".
• Uses vertical layout with Number of Rows as 1.
• Takes the Classic style.

The crosstab shows information about product sales volume in each state of Canada and France like below:

Now, you want to define a comparison function in the crosstab to show the percentage of each state's sales volume to the grand total.

1. Right-click the crosstab and click Crosstab Wizard on the shortcut menu.
2. In the Display screen of the Crosstab Wizard, select Quantity in the Summaries box, then click the Comparison Function button.
3. In the Comparison Function dialog, select Percentage from the Function drop-down list, check Comparison Function Spans on Row Direction, specify Product Type as the break by field and choose Grand Total from the Refer to list.
4. Click OK in the Comparison Function dialog to return to the Crosstab Wizard.
5. Click Finish in the wizard to accept the settings.
6. In the Report Inspector, modify the value of the Format property of the fields corresponding to the percentage to #,###.##% (the fields are represented as QUANTITY9, QUANTITY10 and QUANTITY11 respectively in the Report Inspector).
7. Preview the crosstab again and you will find that a percentage is added to the right of each state's sales volume.



Customizing the layout of a crosstab

When you create or edit a crosstab, you can use the Layout screen of the crosstab wizard to customize the layout of the crosstab according to specific data displayed in the crosstab so as to make the data more intuitive and readable. You can also customize the layout of a crosstab by setting properties in the Report Inspector.

The following are properties that are provided in the Layout screen.

Aggregate

Specifies properties of the aggregate fields.

• Vertical Layout
  If selected, the aggregate fields will be arranged vertically.
  • Number of Rows
    Specifies the number of rows to be displayed in the crosstab. By default, it is -1, which means that there is only one column with which to arrange the aggregate fields vertically; if it is set to 1, that means there will be only one row to arrange the aggregate fields horizontally; if it is set to a number larger than 1, that means there will be this number of aggregate rows to arrange all the aggregate fields horizontally; if this number is larger than the number of aggregate fields in the crosstab, it will be treated as -1.
• Horizontal Layout
  If selected, the aggregate fields will be arranged horizontally. When you have multiple aggregate fields in the crosstab, using horizontal layout can make the report more readable.
  • Number of Columns
    Specifies the number of columns to be displayed in the crosstab. By default, it is -1, which means that there is only one row with which to arrange the aggregate fields horizontally; if it is set to 1, that means there will be only one column to arrange the aggregate fields vertically; if it is set to a number larger than 1, that means there will be this number of aggregate columns to arrange all the aggregate fields vertically; if this number is 0 or it is larger than the number of aggregate fields in the crosstab, it will be treated as -1.
• Repeat Aggregate
  Specifies whether or not to repeat the crosstab for different aggregate fields. If checked, one aggregate cell contains only one aggregate field value, while for the other aggregate fields, the crosstab will repeat; if unchecked, one aggregate cell accommodates the values of all aggregate fields. When the option is checked, the value set for Number of Rows or Number of Columns will be ignored.

  The following sample shows the difference:

  • Repeat Aggregate checked:

  • Repeat Aggregate unchecked:

• Outside Aggregate Title
  Specifies whether to place the aggregate field labels on the leftmost column when the aggregate layout is vertical, or on the topmost row of the crosstab when the aggregate layout is horizontal. Checking this option would make the labels of the aggregate fields far from their values.

Suppress Row Grand Totals

Specifies whether or not to show the grand total row in the crosstab. If the crosstab is a compound crosstab, you can click to customize the grand totals of which column compound groups will be suppressed and which will be shown in the Suppress Row Grand Totals dialog

Suppress Column Grand Totals

Specifies whether or not to show the grand total column in the crosstab. If the crosstab is a compound crosstab, you can click to customize the grand totals of which row compound groups will be suppressed and which will be shown in the Suppress Column Grand Totals dialog.

Suppress Row Subtotal

Specifies whether or not to show the subtotals of the row fields in the crosstab. You can click to customize which subtotals of the row fields will be suppressed and which will be shown in the Suppress Row Subtotal dialog.

Suppress Column Subtotal

Specifies whether or not to show the subtotals of the column fields in the crosstab. You can click to customize which subtotals of the column fields will be suppressed and which will be shown in the Suppress Column Subtotal dialog.

Repeat Column Header

Specifies whether or not the column headers appear on every page when the crosstab spans more than one page.

Use Table Style

Specifies whether to add labels to the Total rows and columns. If checked, you may find the row and column labels will be repeated too much.

Column Totals On

Specifies the position of subtotal and grand total columns on the left or right of the detail aggregations.

Row Totals On

Specifies the position of subtotal and grand total rows on the top or bottom of the detail aggregations.
